Electric multidirectional sideloader with removable order picking platform and vacuum suction device

by HUBTEX

The multifunctional 2-in-1 solution – on the one hand, the electric multidirectional sideloader with removable order picking platform from HUBTEX can be used as a conventional multidirectional sideloader. On the other hand, by attaching a platform, it can also function as a complete order picking vehicle.
In the KP series configuration, the picking process is manual, while in the VK configuration, the picking process is completely automated with the aid of the vacuum suction device.
Our VK models can be used to prevent any damage caused by the manual picking of wood sheets.

Anything but standard

User report – J. u. A. Frischeis GmbH
J. u. A. Frischeis GmbH relies on flexible electric multidirectional sideloaders from HUBTEX for order picking as well as for the stacking and retrieval of large-format wood sheets.
Maximum delivery capacity, ordering service and optimum flow of goods are just a few of the decisive factors that led J. u. A. Frischeis GmbH from Villach to decide on two HUBTEX wire guided electric multidirectional sideloaders.  The great thing with this flexible concept is that one of the two identical MQ 70 Series 2131 PU lift trucks can be extended with the quick addition of an order picking platform if required.
The 4500 mm wide order picking platform has a load capacity of 2.7 tons and can accommodate sheets measuring up to 3000 x 2070 mm. Without a platform, the MQ 70 can move loads up to 13 m in length and 7 tons in weight. “The removable platform gives us excellent flexibility and an optimal fleet for every order situation,” says a spokesperson for J. u. A. Frischeis GmbH.



2 in 1

The multifunctional 2 in 1 solution - the electric multidirectional sideloader with pickable picking platform from HUBTEX. Without a platform, the ESTL can be used as a fully-fledged returnable stacker. Once the platform is picked up, it functions as an order picking stacker.

Features

Electric multidirectional sideloader
A empilhadeira elétrica lateral multidirecional da HUBTEX em operação na indústria madeireira

If there is no platform fitted, the vehicle functions as a conventional electric multidirectional sideloader. These are already designed for handling long loads in their basic configuration, even in narrow aisles
A great advantage of these vehicles is that they can be supplemented by a large number of other equipment options

Detachable platform
A empilhadeira elétrica lateral multidirecional da HUBTEX com plataforma elevada

For use as a pure order picking vehicle, the multidirectional sideloader is supplemented by a removable platform, the attachment takes maximum five minutes. The operator then controls the system from the platform. They pick the sheets either alone or in conjunction with another operator directly from the rack compartments to the vehicle.

Control panels on the platform
A empilhadeira elétrica lateral multidirecional da HUBTEX com plataforma acoplada no processo de seleção de pedidos

The electronics are configured in such a way that, if required, two control panels can also be installed. For the best possible view, the front panel in the direction of travel is always activated.

Vacuum suction device

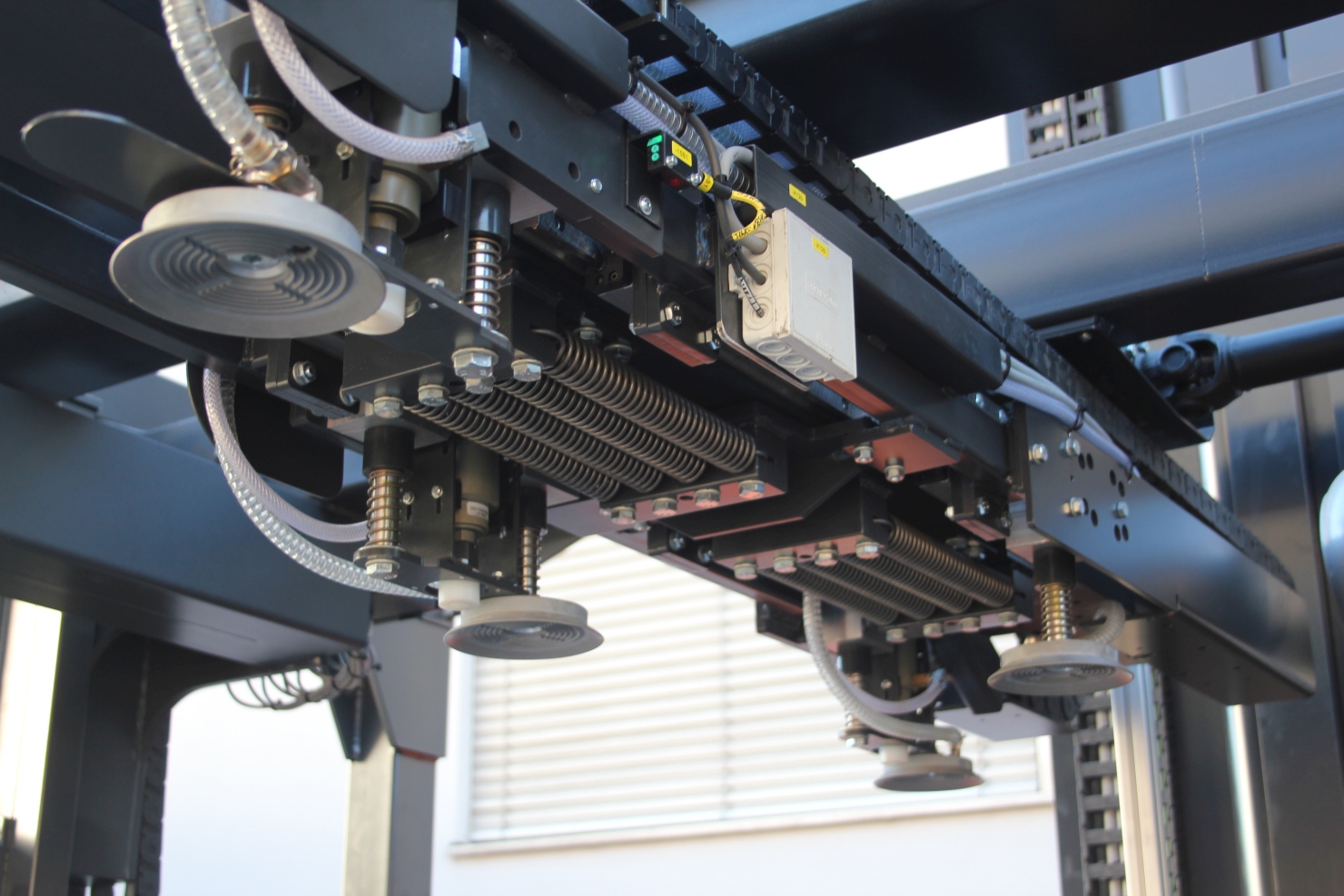

O dispositivo de sucção a vácuo da HUBTEX

In order to further reduce the risk of damage to the materials, a vacuum suction device can be optionally added to the picking platform of the HUBTEX electric multidirectional sideloader. Extendible suction cups extract individual sheets from the rack compartment and then deposit them again directly on the platform. In this case, only one person is required for operation. The great advantage of this modular solution is its flexibility. The multidirectional sideloader can be used cost-effectively for both load handling and order picking with a medium handling capacity.

A empilhadeira elétrica lateral multidirecional da HUBTEX utilizada como veículo de seleção de pedidos

Para a utilização unicamente como veículo de seleção de pedidos, a empilhadeira multidirecional é complementada com uma plataforma acoplável.

A empilhadeira elétrica lateral multidirecional da HUBTEX em operação na indústria madeireira

Situação típica de aplicação: A empilhadeira elétrica lateral multidirecional da série VK da HUBTEX é utilizada para a seleção unilateral de pedidos, geralmente em corredores de estantes estreitos.

Painéis de madeira enormes são selecionados com nossa empilhadeira elétrica lateral multidirecional com plataforma acoplada

Nenhuma carga é grande demais para as nossas empilhadeiras multidirecionais da série KP. Através da configuração individual, é possível desenvolver a plataforma de comissionamento ideal para cada carga.

A MQ 30 da HUBTEX com plataforma de comissionamento acoplada

Dependendo do processo de seleção de pedidos, uma ou até duas pessoas podem retirar ou armazenar a carga a ser selecionada nas estantes.

A empilhadeira elétrica lateral multidirecional da HUBTEX com plataforma acoplada da série Vacumax

A tecnologia de sucção a vácuo proporciona uma proteção especial aos materiais, uma vez que os painéis de madeira podem ser armazenados de maneira uniforme.

Vista aproximada do dispositivo de sucção a vácuo da HUBTEX

Com rapidez e sem danificar materiais - com a tecnologia Vacumax da HUBTEX, a seleção de pedidos de painéis de madeira pesados fica extremamente fácil.

Vista de uma plataforma com dispositivo de sucção a vácuo integrado

Basta acoplar uma plataforma e a nossa empilhadeira elétrica lateral multidirecional se converte em um veículo de seleção de pedidos.

TECHNICAL DATA

Series KP

Depending on the application requirements, the platform from Series 2125 / 2130 / 2131 / 2132 can be attached

Series KP + Vacumax

Depending on the application requirements, the platform from Series 2125 / 2130 / 2131 / 2132 can be attached
