Flux 45 electric multidirectional forklift
The two-in-one lift truck: a forklift and sideloader rolled into one
Load capacity up to 4.5 tonnes
The two-in-one lift truck: a forklift and sideloader
360° HX multidirectional steering

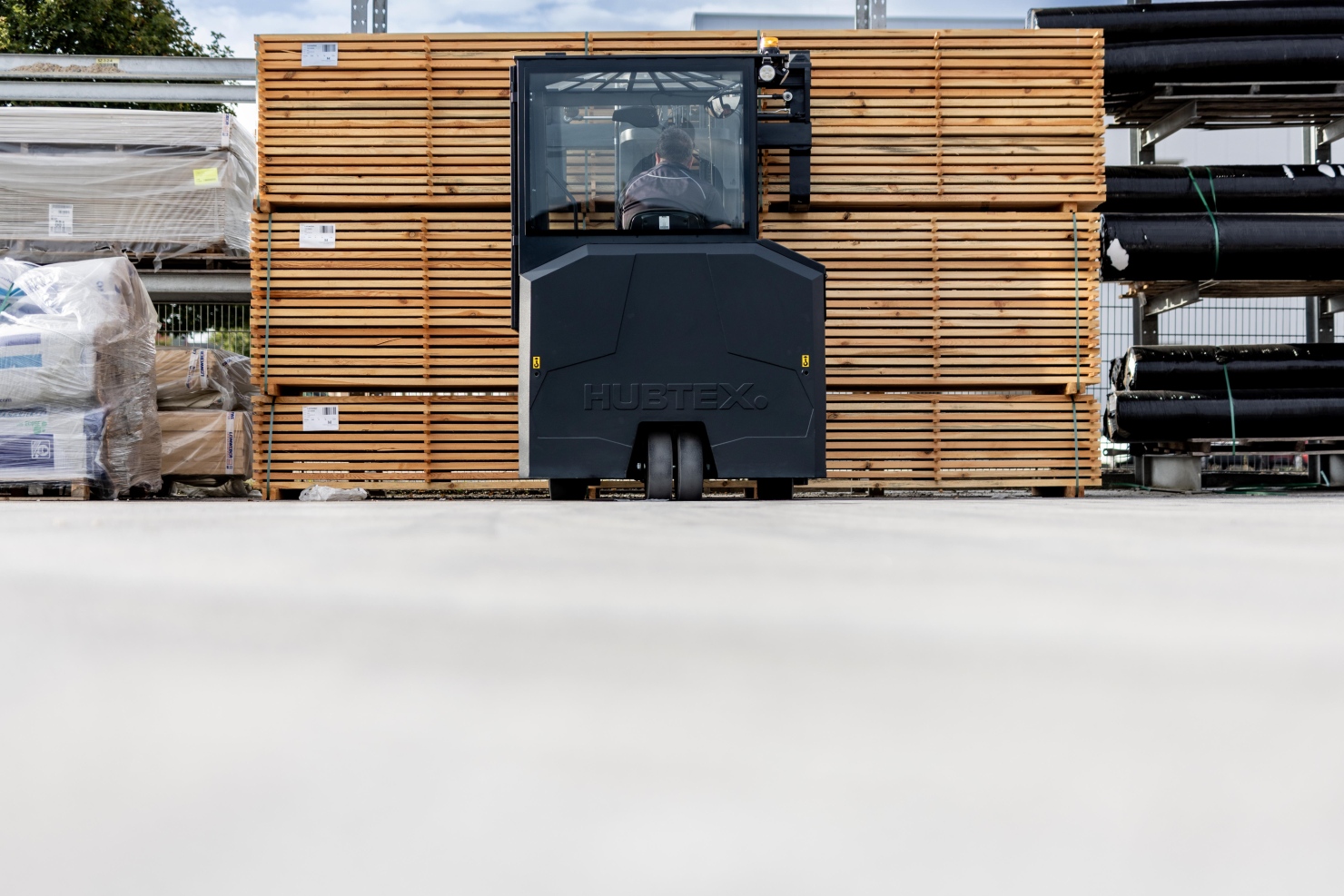

With the FluX, HUBTEX proudly presents the latest generation of multidirectional counterbalance forklift trucks for combined indoor and outdoor use. The FluX is your ideal companion whenever you are mainly moving loads on pallets but also routinely need to transport long loads sideways. A genuine two-in-one lift truck, the multidirectional counterbalance forklift truck can be used flexibly as either a forklift or sideloader.
The low-noise, environmentally friendly electric drive, the innovative 360° HX steering for smooth changes in direction and the ergonomic driver’s cabin make the FluX extremely manoeuvrable, efficient and user-friendly. Thanks to its ultra-compact dimensions, its high load capacity and its lift mast with tilt function, this multidirectional forklift can be deployed anywhere. Its outsized tyres, generous ground clearance and all-wheel drive also make the FluX 45 ideal for outdoor use.
Innovative steering system for combined indoor and outdoor use

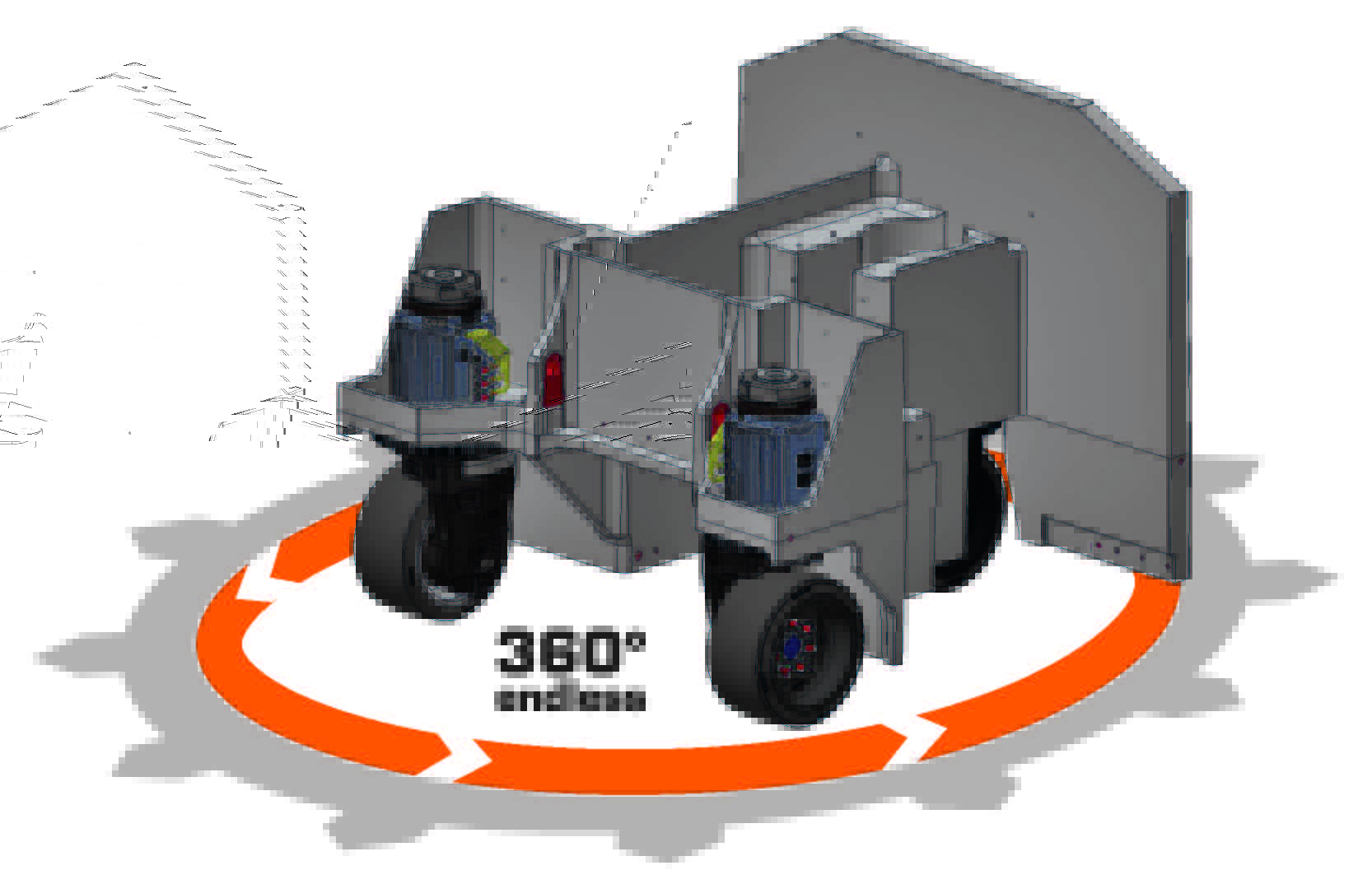

With the HX 360° continuous steering system fitted as standard, the FluX can switch from lengthwise to crosswise travel without stopping. This reduces the time required to adjust the wheels and offers optimal manoeuvrability. This is particularly advantageous when used in free ranging warehouses that involve many direction changes, when loading and unloading trucks or in block storage. The HX steering, which has proven its worth time and again since 2014, ensures the largest possible steering angles and the smallest possible turning radii.
Another benefit is much lower wear to the wheels, since the forklift can change direction while in motion and does not necessarily have to stop to do so. Its high speed of up to 12 km/h, its outsized elastic tyres (EL), its generous ground clearance and its all-wheel drive with innovative drive units mean that the FluX is also perfect for outdoor work.
Enjoy comfort and unbeatable equipment with the FluX

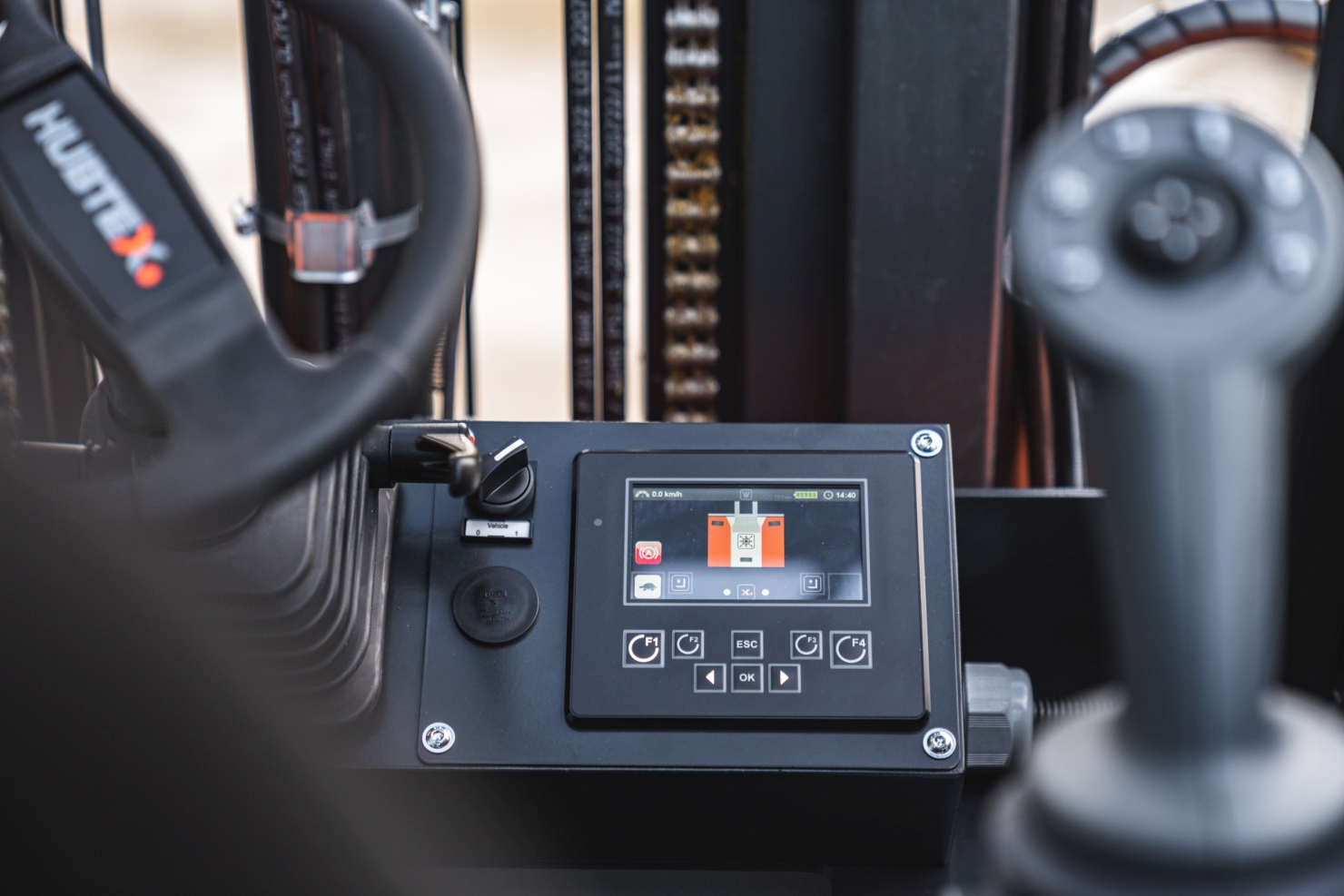

The spacious cabin on the multidirectional forklift guarantees the driver maximum comfort and full freedom of movement. All vehicle information is shown clearly on the colour display screen of the latest-generation HIT Mini (HUBTEX Information Terminal). Extra comfort comes in the shape of the low entry height, the steering column with adjustable height and angle and the optional air-suspended seat. The cabin has been designed for maximum ergonomic efficiency, with all-round visibility maximised by the central seating position, more compact lift masts and a fork carriage optimised for your specific application and fitted with sideshift.
Great advice results in optimal solutions.
We know that handling long, heavy, and bulky loads presents users with particular challenges. Arrange a no-obligation consultation appointment with one of our specialists to find the best possible solution for your application.
Features

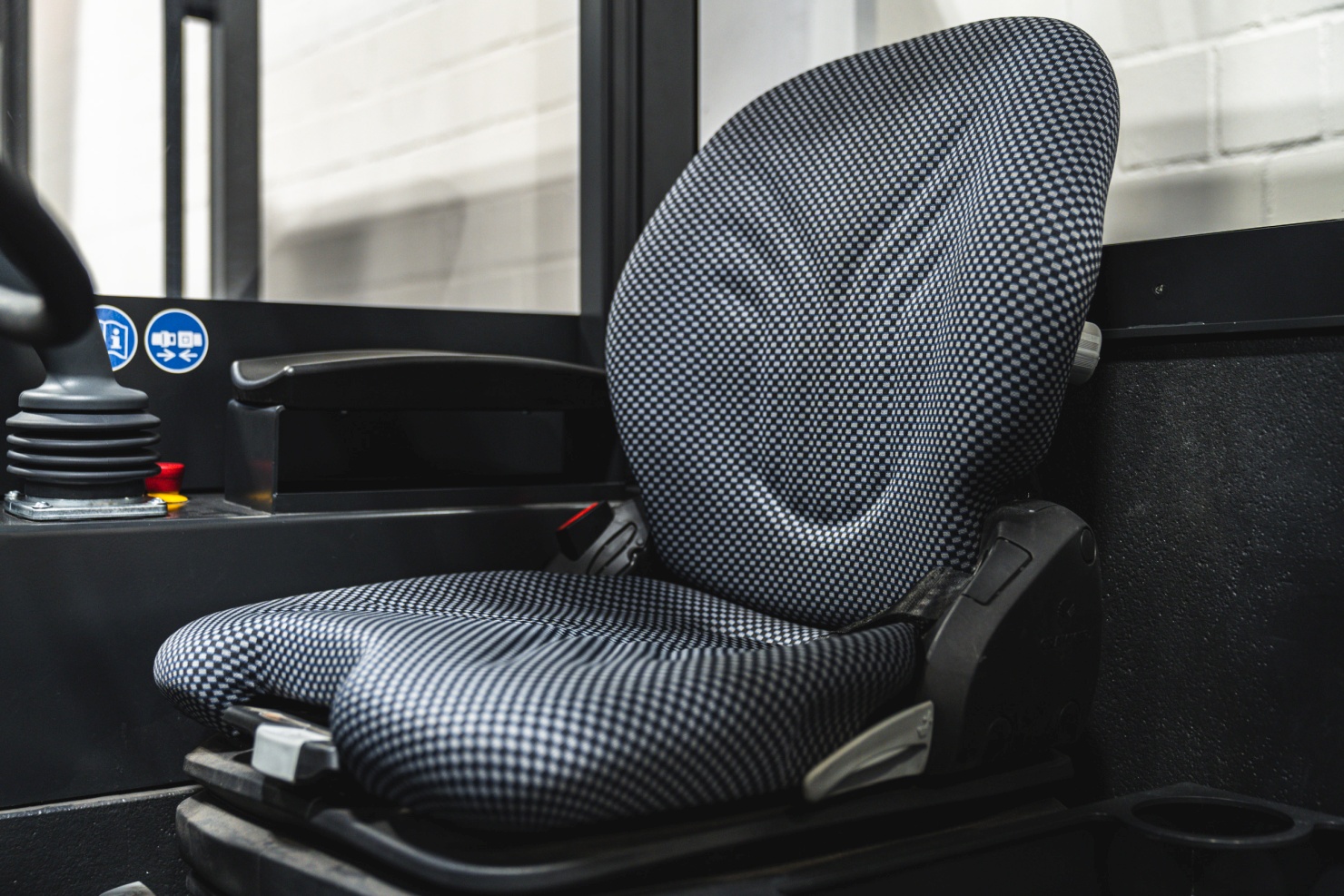

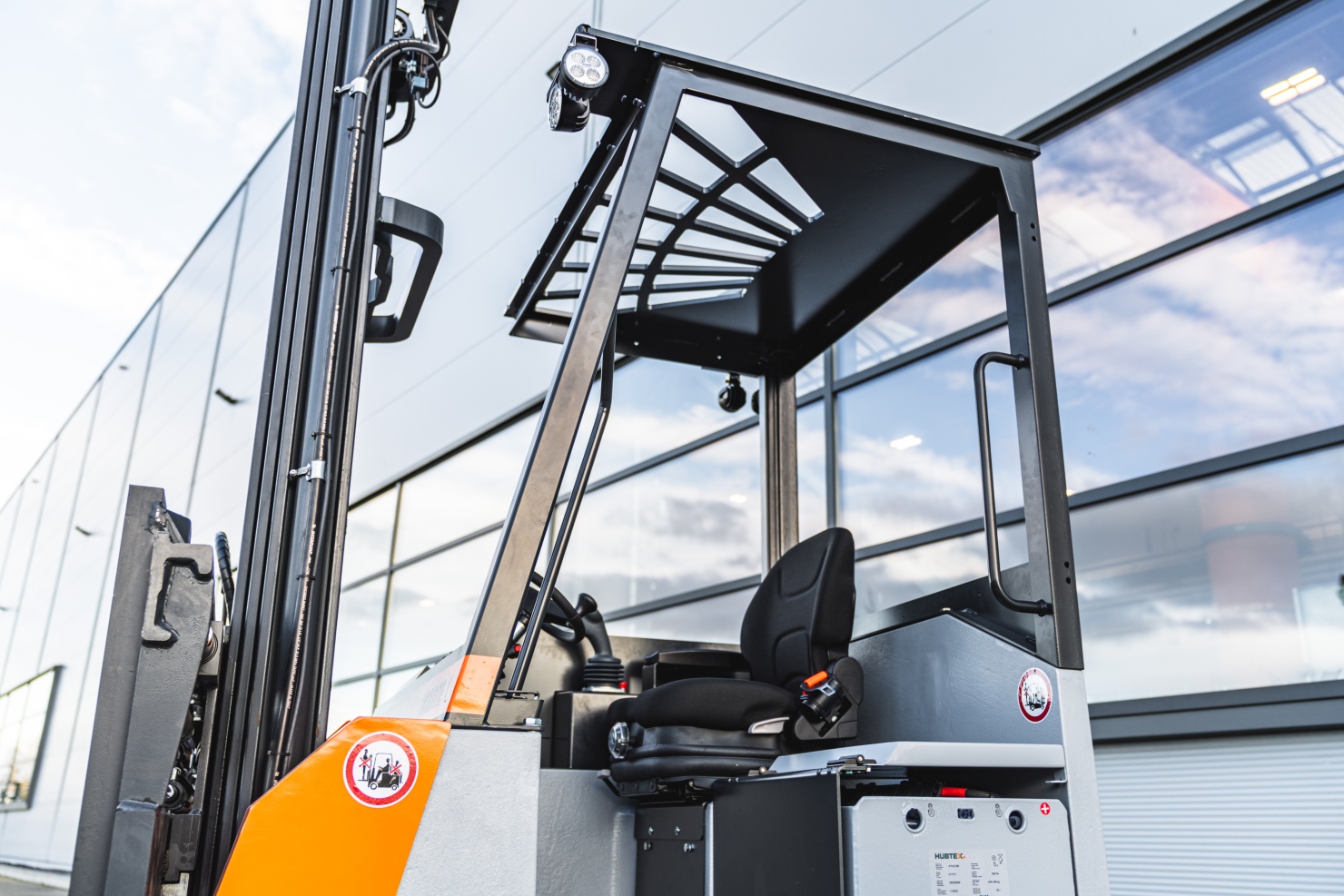

The spacious driver’s cabin guarantees maximum comfort and full freedom of movement. To increase comfort even further when working outdoors, the standard cabin can be customised by adding a door, windows and other options. All vehicle information is clearly displayed on the colour display screen of the latest-generation HIT MINI (HUBTEX information terminal). All hydraulic functions are controlled and the direction of travel selected easily and conveniently using the ergonomic multifunction joystick. A low entry height, a steering column with adjustable height and angle and a centrally positioned air-suspended seat make work even more comfortable for the driver.
The unique idea behind the cabin ensures outstanding all-round visibility. Slim columns and large windows provide optimum visibility and give the operator the best possible overview of their lift truck.
The FluX can switch seamlessly between lengthwise and crosswise travel without stopping because it comes as standard with the HX 360° continuous steering system, which has proven its worth since 2014. This cuts the time needed to adjust wheels and provides excellent manoeuvrability. The all-wheel drive is particularly advantageous when used in free ranging warehouses that involve frequent direction changes, when loading and unloading trucks, or in block storage. Another benefit is much lower wear to the wheels, since the forklift can change direction while in motion and does not necessarily have to stop to do so.
This truck series is equipped with a three-wheel chassis to optimise driving and steering. In order to respond to a wide variety of ground conditions, such as asphalt or paved surfaces, the trucks are fitted with elastic tyres (EL) as standard.

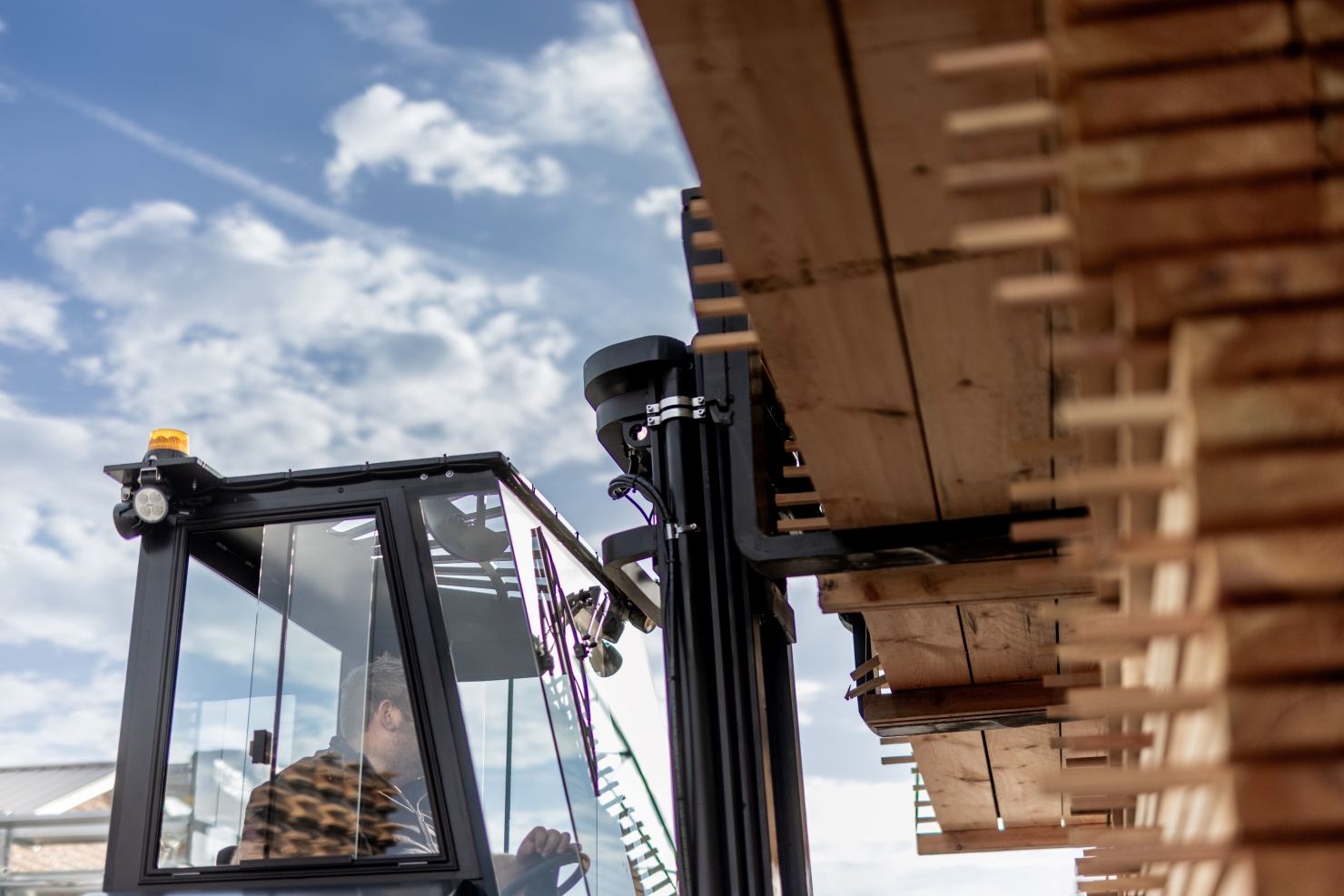

Lift masts and fork carriages were specially developed for this vehicle series. The focus of the development was to optimise visibility of the load and the route of the truck. The results are very compact lift masts and optimised fork carriages with hydraulic sideshift. With a fixed mast and tilt function, the trucks provide effective and safe handling in the rack system. A choice of Simplex, Duplex and Triplex lift masts with different lift heights up to 7500 mm are available for the FluX.
Technical specification
FluX 45 (2410-EL series) – NEW
Load capacity 4.5 t
Lift height up to 7500 mm
High residual load capacities with compact dimensions
Fork length 1200 mm
Frame length 1680 mm
EL or PU soft tyres
72 V battery
Crosswise cabin
Speed 12 km/h
Mast tilt +7°/-3°
