Order picking on
both sides
of the rack
High rate
of turnover
Narrow rack
aisle width



order picking platform

The electric two-sided order picking platforms of the EZK series are solely order picking platforms. Whether in the 2-mast or scissor lift version, they enable the picking of profiles up to 8 m in length. The goods can be easily picked from either side of the rack aisle. A load shifting device is optionally available for both models to facilitate the removal of the customer consignment by a separate lift truck.

EZK two-sided order pickers

In order to pick profiles quickly and without damage, manufacturers and dealers need an order picking system adapted to the individual requirements of the respective warehouse. With the help of a vehicle concept especially adapted to your needs and requirements, all areas of application can be mapped with the order picking platforms from HUBTEX.
In its basic version, the platform solution from HUBTEX is suitable purely for picking pipes and profiles on both sides of a rack aisle. Two operators stand on the platform and pick the long loads manually. Once the consignment is ready, stacking in this case is with multidirectional sideloaders. In the next expansion stage, the vehicles can optionally be equipped with telescopic tables which stack the consignment in the rack system and enable the direct transfer to the next production stage. Consequently, no additional lift truck is required to unload the goods, meaning that the rack aisles can be particularly narrow if required.

Unser EZK verlässt das Werk in Fulda

Fast wie in Watte gepackt sieht er aus. Damit bei dem Transport zum Kunden auch wirklich nichts passieren kann, geben unserer Versandmitarbeiter alles. Von Straßensperrungen bis hin zu Fahrzeugen die unsere Schwerlasttransporte begleiten, bei der Auslieferung unserer Stapler achten wir auf jedes noch so kleine Detail, sodass diese beschädigungsfrei bei unseren Kunden ankommen.


2-mast version
The HUBTEX order picking platform as a 2-mast version

The 2-mast version of the HUBTEX order picking platform is especially characterized by its low platform height. This offers benefits when accessing the lowest rack level.

Scissor lift version

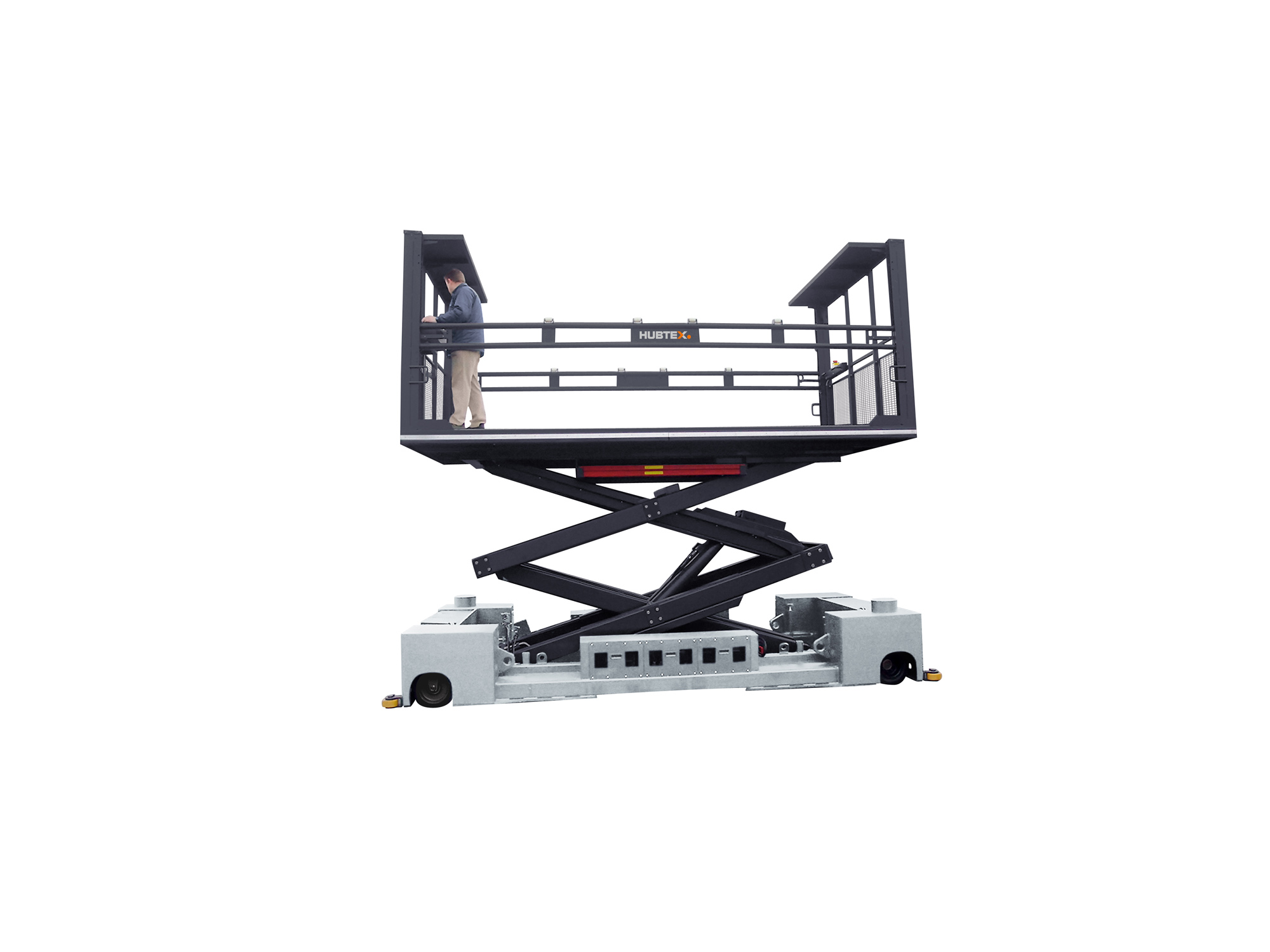

The HUBTEX order picking platform as a scissor lift version

In contrast to the 2-mast version, the advantage of the scissor lift version is its shorter overall length. For this reason, order picking platforms with a scissor lift system can be operated in significantly narrower spaces. Thus, the width of the transfer aisle can be reduced.

Multidirectional steering

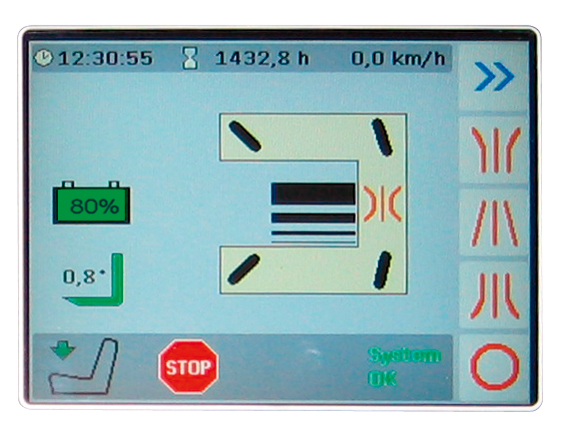

Display screen of the electric two-side order picking platform from HUBTEX

HUBTEX sets innovative standards with the HX multidirectional steering system. Using the optionally available omnidirectional steering system enables the trucks to change without stopping from longitudinal to transverse drive. This lessens the time needed to switch wheels, provides excellent maneuverability and reduces wear on the wheels.

Control station

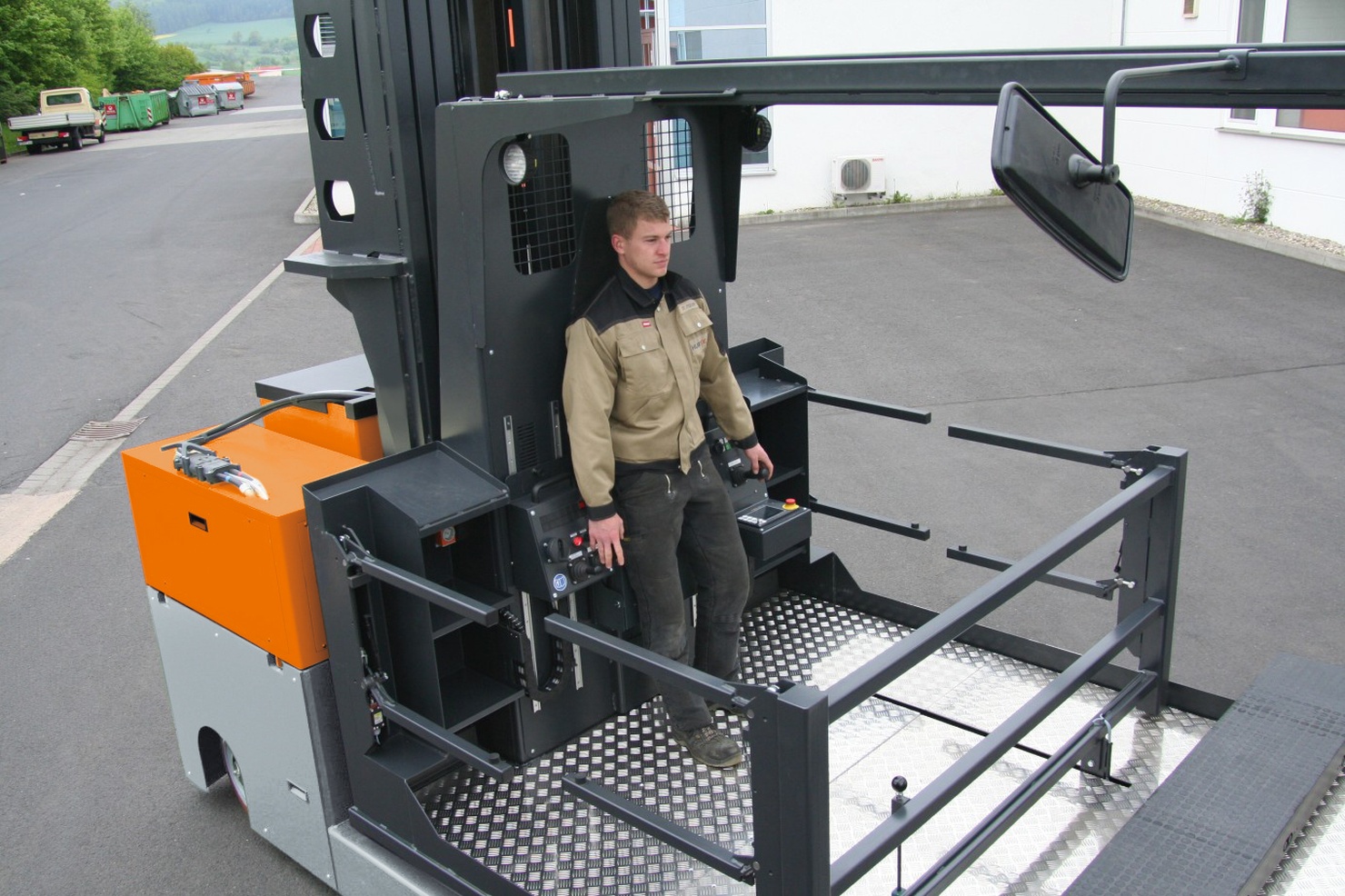

The driver’s stand on the electric multidirectional order picking platform in standing version

You can choose different variants for operating the vehicle. It can be equipped with one or two control stations. When equipped with two control stations per vehicle, the advantage is the best possible overview in each driving direction. Moreover, the operator can choose between two different configurations of the control station. Standing in main driving direction, or seated, facing the load (only in combination with a personal protection system).

Telescopic tables
The HUBTEX two-side order picker with telescopic table option

HUBTEX two-sided order pickers can be optionally equipped with telescopic tables for the transfer of the completed consignment. In this way, a finished pack can be passed on to a transfer station from both sides of the order picking vehicle.

Scissor lift

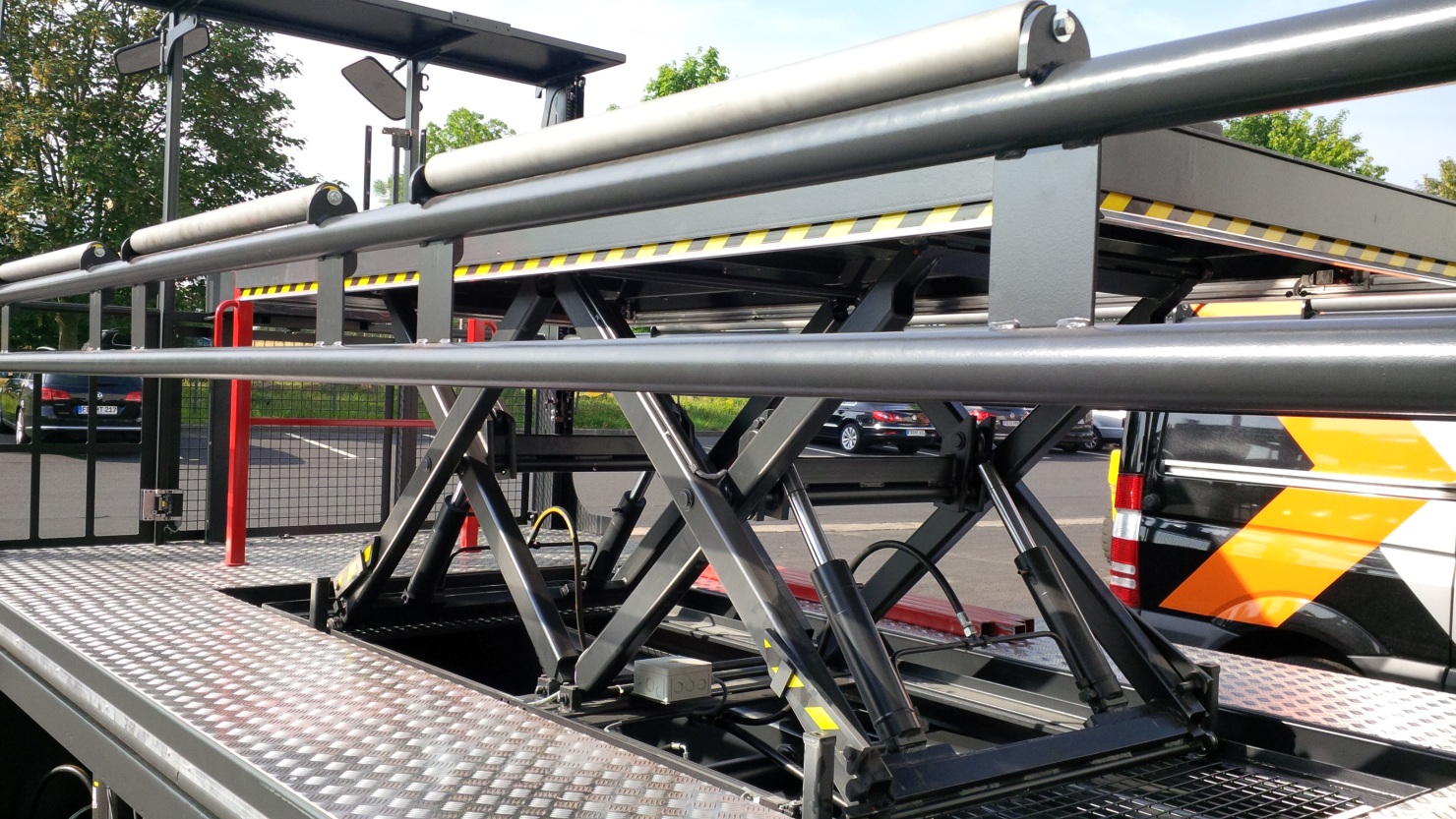

Scissor lift platform on an electric multidirectional order picking platform

As an option, the HUBTEX order picking platform can be equipped with a scissor lift on the platform to facilitate the ergonomic picking of goods. Thus, the stacking height on the vehicle can be individually adjusted, avoiding unnecessary bending or stooping by the operator.

We know the best solution.

We know that the handling of long goods presents users with special challenges. Arrange a non-binding consultation appointment with our specialists to find the best possible solution for your application.

The HUBTEX electric two-side order picking platform in the 2-mast version

The 2-mast order picking platform is characterized in particular by its low platform height, which offers benefits when accessing the lowest rack levels.

The HUBTEX two-side order picking platform entering a rack aisle

Best possible overview guaranteed – as our electric two-side order picking platforms can be optionally equipped with two control stations, an optimal overview is possible in every direction of travel.

The clear multifunctional display from HUBTEX

With the further development of the HUBTEX Information Terminal, HUBTEX is consistently continuing its journey towards Industry 4.0. As a component of all multidirectional sideloaders, the new HIT3 provides information on all relevant operating conditions. The multifunctional display with its new visualization provides the driver with all the information on the wheel position, speed and battery status of the order picking platform in a simple graphic display.

Order picking of the finished picked goods via an intermediate station

A load shifting device is optionally available for both models (2-mast order picking platform & scissor lift order picking platform) to facilitate the removal of the completed customer consignment using a separate lift truck.


Series Load capacity (t) Load bed width NB (mm) Lift height (mm) Frame length L (mm) Load bed opening RA (mm) Tire equipment (optional) Battery voltage Cab (optional)
EZK (scissors) 3.0 to 6.0 600 to 1200 up to 10000 up to 9000              --- PU / EL 80 V Driver’s stand
EZK (lift mast) 3.0 to 6.0 600 to 1200 up to 10000 up to 10000               --- PU / EL 80 V Driver’s stand
